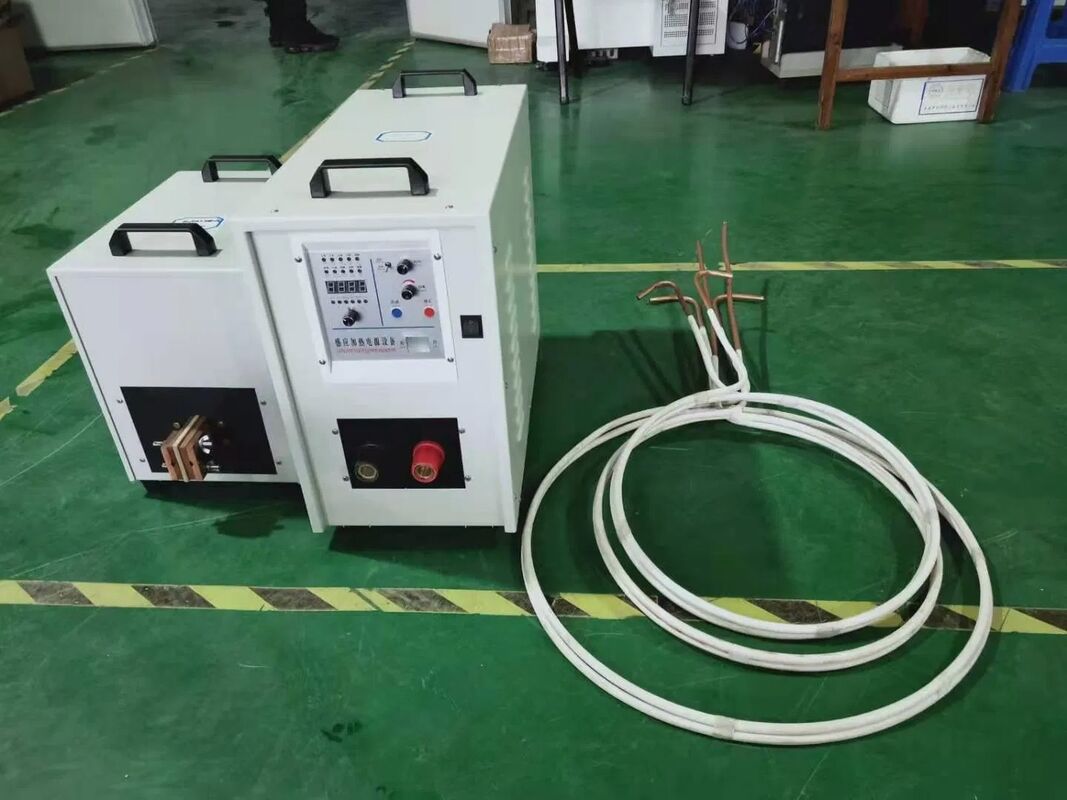

Induction Heating Machine: (Induction heaitng machine for annealing with  SF-60kw )
Advantage:Â
1 More than 21 years experience, stable and goods performance
2 CE certificated
3 Copperated with CHOW TAI FOOKS, Matsushita, Foxconn, Media, Gree a6ND ZHIGAO Air conditioner.Â
4 Suitable for a large range, heating, quenching, forging, melting, solding and so on.Â
5 One main part match two transformers, use the change switch to control let which one transformer to work, which one is prepare, save the time, improve the working effciency.Â
6 Each transformers have two transformer ratios, which good for connect different induction coils to work different workpiece.Â
Main characteristics:Â
1 Siemens IGBT module and Inverting technologies of third generation been used; Higher reliability and lower maintenance cost.Â
2 100% Duty cycle, continuous working is allowed at maximum power output.Â
3 Display of heating power and heating current and oscillating frequency;Â
4 Simple to install, Installation can be done by unprofessional person very easily;Â
5 Light weight
6 Advantages of the model with timer: The power and the operating time of the heating period and the retain period can be preset respectively, to realize a simple heating curve, this model is suggested to use for batch production to improve the repeatability;Â
7 Constant current or constant power status can be selected accordingly to achieve higher heating efficiency;Â
| Type | SF-60KW |
| Work Power | 3*380v/415v/440v/480v 50-60hz |
| The range of operating voltage | 340-430V AC |
| Output power | 60KW |
| Input current | 90A |
| Fluctuating frequency | 20-50khz |
| Timing | 1-99S |
| The flow rate of cooling water | 0.15 Mpa 11L/Min |
| Water temperature protection point | 40centidegree |
| Duty cycle | 100% (40degree room temperature) |
| Weight | Mainparts:45Kg Transformer:38kg |
| Size | Main Parts:640*350*550MM Transformer: 510*270*440MM |
