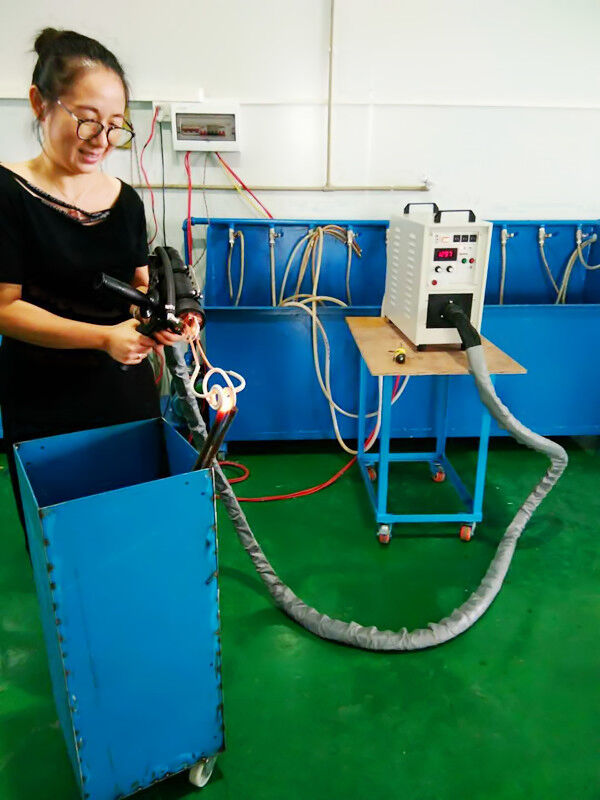

Proble Handheld High Frequency Induction Heating Equipment Hfh-25kw

Proble Handheld High Frequency Induction Heating Equipment Hfh-25kw

Số lượng đặt hàng tối thiểu: 1
giá bán: 1000
Thông tin chi tiết
Mẫu số:
HFH-25KW
Kết cấu:
Loại dọc
Thương hiệu:
ĐẶT HÀNG
Dòng điện tối đa:
28A
Cáp đồng trục:
>/=4,5m
Phạm vi ứng dụng:
Sưởi ấm, hàn, hàn
Gói vận chuyển:
Hộp gỗ xuất khẩu
Đặc điểm kỹ thuật:
CE, SGS
Nhãn hiệu:
ĐẶT HÀNG
Nguồn gốc:
Trung Quốc
Mã HS:
8514400090
Năng lực sản xuất:
100000 bộ / năm
Làm nổi bật:

Handheld High Frequency Induction Heater

,

HFH-25KW Induction Heating Equipment

,

Portable High Frequency Heater

Mô tả sản phẩm

HF-25KW  Type High Frequency Induction Heating Machine Proble Handheld High Frequency Induction Heating Equipment Hfh-25kw 0
1 Siemens IGBT module and Inverting technologies of third generation been used; Higher reliability and lower maintenance cost.
2 100% Duty cycle, continuous working is allowed at maximum power output.
3 Display of heating power and heating current and oscillating frequency;
4  Simple to install, Installation can be done by unprofessional person very easily;
5  Light weight
6 Advantages of the model with timer: the power and the operating time of the heating period and the retain period can be preset respectively, to realize a simple heating curve, this model is suggested to use for batch production to improve the repeatability;

Type HF-25KW
Work power 3×380V(415V,440V,480V)50-60HZ
The range of operating voltage 340V-430V(370-480)V AC
Output power 25KW
Fluctuating frequency   30-80KHZ
Max Input Current 25A-28A
Timing (Heat time, Retain time , Cool time) 1-99S
The flow rate of cooling water  0.08-0.16 Mpa 9L/Min
Water temperature protection point   40ºC
Duty cycle 100%(40degree room temperature)
Weight 45Kg +5KG
Size 600*230*500MM


Proble Handheld High Frequency Induction Heating Equipment Hfh-25kw 1Proble Handheld High Frequency Induction Heating Equipment Hfh-25kw 2
